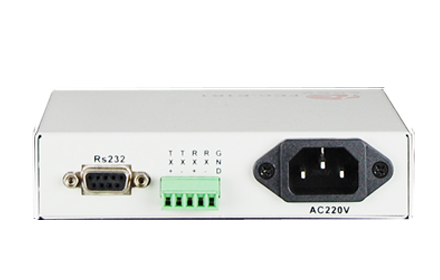

CAN BUS Fiber Modem （Desktop Tpye）

Type: Message

Description:

Product Description
               The cats can achieve optical fiber CAN CAN bus signals are converted to optical signals on optical fiber transmission, extended the role played CAN bus communication distance, and because the use of optical fiber communication, to solve the electromagnetic interference, ground loop interference and lightning damage, greatly improving the reliability of data communications, security and confidentiality, can be widely used in various industrial control, process control, and traffic control and other occasions, especially for banks, electricity and electromagnetic interference environment departments have special requirements and systems.

Functional Properties
? Based on proprietary integrated circuit;
? Provide a CAN bus interface, an optical port
? CAN transparent data transmission, without any set
? CAN interface Maximum number of nodes 128
? CAN interface rate 0-500Kbps
? CAN interface speed in line with international CAN1.0, CAN2.0 standard
? multiple power mode options: AC220V, DC-48V / DC24V etc.

? DC-48V / DC24V power supply with automatic polarity detection function,

       when installed without distinction between positive and negative

? CAN interface with lightning protection, lightning reached GB / T17626.5 (IEC61000-4-5)

       Short circuit current wave 8 / 20μs, open standard peak output voltage 6KV

Technical Parameters

u  Fiber

         Multi-mode Fiber

    50/125um, 62.5/125um,

    Maximum transmission distance: 5Km @ 62.5 / 125um single mode fiber, attenuation (3dbm/km)Wave Length: 820nm

    Transmitting power: -12dBm (Min) ~-9dBm (Max)

    Receiver sensitivity: -28dBm (Min)

    Link budget: 16dBm

        Single-mode Fiber

    8/125um, 9/125um

    Maximum transmission distance: 40Km

    Transmission distance: 40Km @ 9 / 125um single mode fiber, attenuation (0.35dbm/km)

    Wave Length: 1310nm

    Transmitting power: -9dBm (Min) ~-8dBm (Max)

    Receiver sensitivity: -27dBm (Min)

    Link budget: 18dBm

u   CAN Bus interface

    Rate: 0-500Kbps

    Interface characteristics: compliance with international CAN1.0, CAN2.0 standard
    Connector: Phoenix terminal
u   Power

    Power supply: AC180V ~ 260V；DC –48V；DC +24V

    Power consumption: ≤10W

u   Dimension

    Product Size:         103X93X28mm(WXDXH)

    Simple packaging:   200X176X55mm(WXDXH)

    Piece Weight :      1.2KG

 u  Working environment

    Working temperature: -10°C ~ 50°C
    Working Humidity:        5%~95 % (no condensation)

    Storage temperature:   -40°C ~ 80°C
    Storage Humidity:         5%~95 % (no condensation)

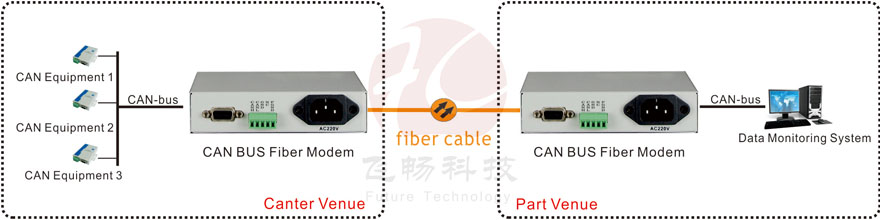

Application Scheme

Applications


DataSheet Download
